IEC61850 Power Devices

The management platform supports the integration of IEC61850 Power Devices.

This section enables you to understand the components, such as the list of object models and meters/devices associated with the EnergyAndPower_Device_IEC61850_Meters_HQ_2 library.

For information on naming conventions for names, paths, and other elements, see Common Rules for Names and Paths in the Management System and Naming Rules for Subsystem Elements in Naming Conventions.

CSV Data for IEC61850 Power Meters

In order to create instances of the IEC61850 power meters, you must create the engineering data in the form of a comma-separated value (CSV) file. A CSV file contains data in which values are represented as text and separated using a separator such as comma (,). This format can be easily edited in simple text editors such as Wordpad or Notepad. More elaborate editing can be done using advanced word processing tools, like Excel. The Importer can parse CSV files which only use the comma (,) as the separator.

The CSV file must consist of the following components:

Name of the subsystem to which the IEC61850 driver is associated with
Current version of the csv file
Name and details of the connections where you want to create the devices
Names and details of devices

For details on the number of fields for the connection and device entries in the CSV file, see Format of the CSV Data in Librarian Configuration Workspace.

A template of the CSV file (IEC61850_template_3.1_Instances.csv) is present at [Installation Drive]:\[Installation Folder]\GMSMainProject\profiles\IEC61850DataTemplate. You can create a copy of this file at any location on your hard drive and thereafter modify the information present in the [CONNECTIONS] and [DEVICES] sections as per the device configuration.

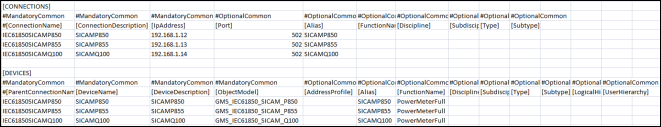

The following example shows a sample CSV file that is used to create instances of devices.

Libraries

When you install the management platform and select the IEC61850 Power Devices 2 extension, from the Energy and Power extension suite, the EnergyAndPower_Device_IEC61850_Meters_HQ_2 library is installed on your system.

The following table lists object models for IEC61850 Power Devices.

Device		Object Model	Short Name	Function Name	Address Profile
Sicam P850		GMS_IEC61850_SICAM_P850	SICAM_P850	PowerMeterFull	Full
					1PhaseWithoutHar
					1PhaseWithHar
					3Phase3Wires
					3Phase4Wires
Sicam P855		GMS_IEC61850_SICAM_P855	SICAM_P855	PowerMeterFull	Full
					1PhaseWithoutHar
					1PhaseWithHar _FW_V02_41_02 NOTE: Applicable only when the firmware version installed is V02.41.02.
					3Phase3Wires WithoutVoltHar
					3Phase3WiresWith AllHar _FW_V02_41_02 NOTE: Applicable only when the firmware version installed is V02.41.02.
					3Phase4Wires
Sicam Q100		GMS_IEC61850_SICAM_Q100	SICAM_Q100	PowerMeterFull	Full
					1Phase
					3Phase3Wires
					3Phase4Wires
Sicam Q100_V2XX	GMS_IEC61850_SICAM_Q100_V2XX		SICAM_Q100_V2XX NOTE: Applicable only when the firmware version installed is V2.4 and above.	PowerMeterFull	Full
					1Phase_V2xx Base10cycleOr12cycle
					3Phase3Wires_Balanced_V2xx Base10cycleOr12cycle
					3Phase3Wires Unbalanced(2I)_V2xx Base10cycleOr12cycle
					3Phase3Wires Unbalanced(3I)_V2xx Base10cycleOr12cycle
					3Phase4Wires Balanced_V2xx Base10cycleOr12cycle
					3Phase4Wires Unbalanced(PH_N)_V2xx Base10cycleOr12cycle
					3Phase4Wires Unbalanced(PH_PH)_V2xx Base10cycleOr12cycle
					1Phase_V2xx Aggregation150cycleOr180cycle
					3Phase3Wires_Balanced_V2xx Aggregation150cycleOr180cycle
					3Phase3Wires Unbalanced(2I)_V2xx Aggregation150cycleOr180cycle
					3Phase3Wires Unbalanced(3I)_V2xx Aggregation150cycleOr180cycle
					3Phase4Wires Balanced_V2xx Aggregation150cycleOr180cycle
					3Phase4Wires Unbalanced(PH_N)_V2xx Aggregation150cycleOr180cycle
					3Phase4Wires Unbalanced(PH_PH)_V2xx Aggregation150cycleOr180cycle
Sicam Q200		GMS_IEC61850_SICAM_Q200	SICAM_Q200 NOTE: Applicable only when the firmware version installed is V2.6 and above.	PowerMeterFull	Full
					1Phase Base10cycleOr12cycle
					3Phase3Wires_Balanced Base10cycleOr12cycle
					3Phase3Wires_Unbalanced(2I) Base10cycleOr12cycle
					3Phase3Wires_Unbalanced(3I) Base10cycleOr12cycle
					3Phase4Wires_Balanced Base10cycleOr12cycle
					3Phase4Wires_Unbalanced Base10cycleOr12cycle
					1Phase Aggregation150cycleOr180cycle
					3Phase3Wires Aggregation150cycleOr180cycle
					3Phase3Wires_Unbalanced(2I) Aggregation150cycleOr180cycle
					3Phase3Wires_Unbalanced(3I) Aggregation150cycleOr180cycle
					3Phase4Wires_Balanced Aggregation150cycleOr180cycle
					3Phase4Wires_Unbalanced Aggregation150cycleOr180cycle

This section provides background information on IEC61850 Power Devices 2 of Desigo CC. For related procedures, see the step-by-step section.
